DC High Speed Brushed Motor 8mm 0.3mNm 8620rpm 2.4V Stable Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | RE0816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 90000PCS per Month |
|
Detail Information |
|||
| Product Type: | Electric Motor - 8mm Brush Coreless Motor | Rated Torque:: | 0.3mNm Or Customized |
|---|---|---|---|
| Rated Voltage: | 2.4V To 12V DC Or Customized | Applicaiton Field: | Precision Drives In Medical Equipment, Industrial Automation Fields. |
| Warranty: | 2 Years | Motor Dimension: | 8mm (motor Diameter)*16mm (body Length) |
| Highlight: | DC High Speed Brushed Motor,Stable Operation High Speed Brushed Motor,Stable Operation Brushed Coreless Motor |
||
Product Description

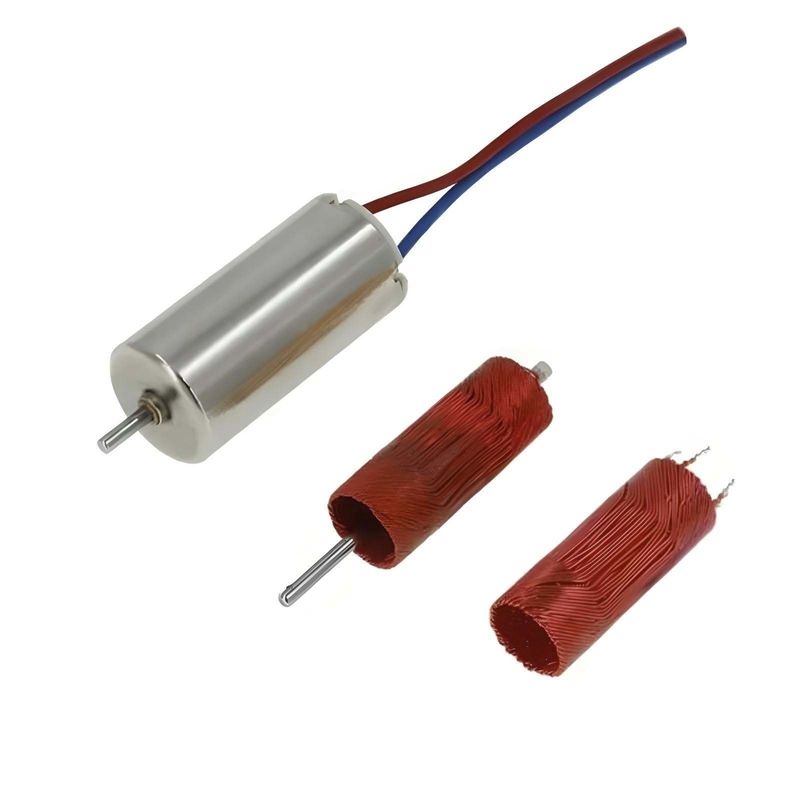

8mm Brush Motor with Coreless Winding 0.3mNm 8620rpm 2.4V to 12V DC Customizable
Product Tag: 8mm Electric Motor, 8mm Brush Motor, 8mm Micro Motor, 8mm Micromotor, 8mm Brushed Motor, 8mm DC Motor, 8mm Coreless Motor, 8mm Brush DC Motor, 8mm Coreless DC Motor, 8mm DC Coreless Motor, 8mm Brushed DC Motor
- Coreless windings are a key feature of our precision DC coreless motors (micro electric motors).
- Their integrated design, which includes a symmetrical winding, commutator, and motor shaft, ensures smooth and stable operation with minimal vibration.
- These Brush Motors offer several advantages: low inertia for quick acceleration, high efficiency, no cogging, and linear output performance.
- Additionally, they excel in speed regulation and servo performance.
- Our Coreless Motor range spans diameters from 8mm to 40 mm. Customization for other dimensions and specifications is readily accommodated.
If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.
Key Specifications for this Ø8mm Brushed Coreless DC Motor
- Motor Dimension: 8mm (motor diameter)*16mm (body length)
- Rated Voltage: 2.4V to 12V DC or Customized
- Rated Torque: 0.3mNm or Customized
- Rated Speed: 8620rpm to 10500rpm or Customized
- Rated Power: 0.33W or Customized
- Brushed DC Motor can be assembled with gearboxes.
To see the product catalogue on our Brush Coreless Motor Φ8-40mm , please
Please review the standard data and dimensions of the motor below.
Please note that we can provide deep customization based on your size and data requirements.
