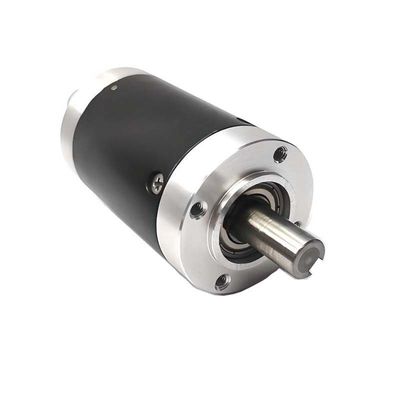

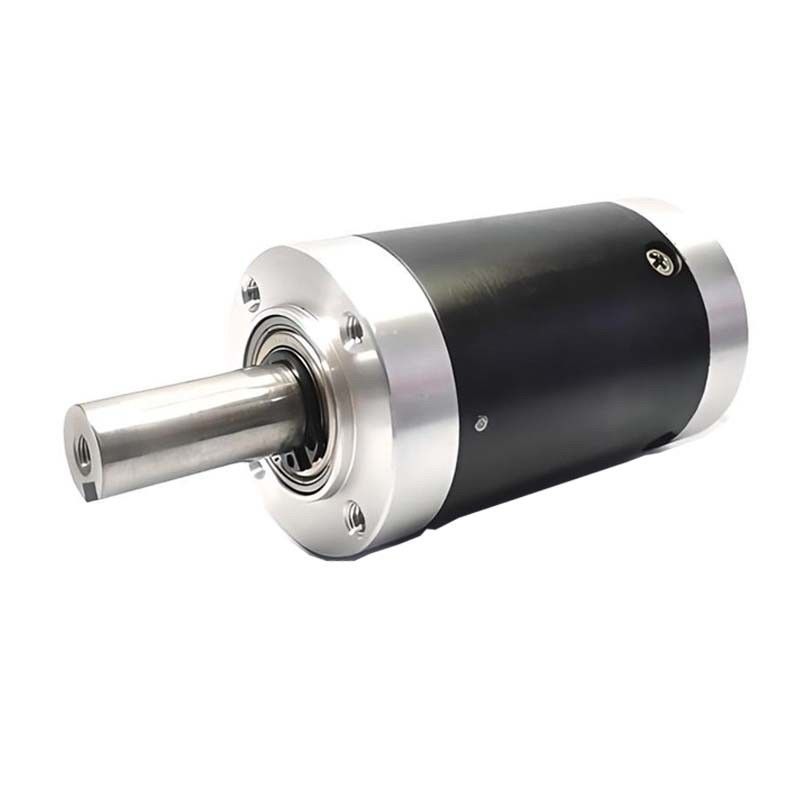

High Efficiency 42mm Planetary Reduction Gearbox 15N.M Robust Rustproof
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | PM42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10000PCS per Month |
|
Detail Information |
|||
| Product Type: | 42mm Planetary Gearhead | Gear Ratio: | 3.47:1 To 6016.92:1 |
|---|---|---|---|
| Housing Material: | Stainless Steel | Gear Material: | All Steel With Hard Tooth Surface |
| Maximum Input Speed: | 6000 Rpm | Rated Output Torque: | 2N.m To 15N.m |
| Highlight: | High Efficiency Planetary Reduction Gearbox,Rustproof Planetary Reduction Gearbox,High Efficiency Planetary Gearhead |
||
Product Description
42mm Planetary Gearhead Metal Gear Reducer with Hardened Steel Gears 15N.m Robust Low Noise
Product Tag: Planetary Gearbox , Metal Planetary Gearbox , Steel Planetary Gearbox , Customized Planetary Gearbox , Planetary Gearhead, Metal Planetary Gearhead , Steel Planetary Gearhead , Customized Planetary Gearhead , Planetary Gear Reducer , Metal Planetary Gear Reducer , Steel Planetary Gear Reducer , Customized Planetary Gear Reducer , NEMA 23 Planetary Gearhead , 42mm Planetary Gearbox , 42mm Planetary Gear Reducer , 42mm Planetary Gearhead
Planetary gearboxess – robust and precise
- PANDA Electronics' steel planetary gearbox, when paired with their DC motors, are ideally suited for applications that require high torque, thanks to their robust construction. These steel planetary gearboxes are specifically designed to handle intermittent or sudden load changes, ensuring durability. Additionally, their low backlash feature enables exceptional accuracy, making them perfect for precise positioning tasks.
- Furthermore, PANDA Electronics specializes in developing high-precision gearboxes that can endure challenging operational conditions, whether that involves high torque, high speeds, or extreme temperatures. We also provide customization options for gearbox output shafts and flanges to meet specific needs.
Characteristics and Advantages:
- Type: planetary
- Housing material: Stainless steel
- Gear material: Full steel, hardened tooth surface
- Gear processing: Swiss gear hobbing machine, precision hobbing, overall carburizing and quenching
- Gearbox's outer diameter: 42mm
- Rated Torque range: from 2- 15Nm
- Number of stages: from single-stage to five-stage
- Wide gear ratio ranges: from 3.47:1 to 6016.92:1
- Output end bearing: ball bearing
Please review the standard data and dimensions of the gearboxes below. Please note that we can provide deep customization based on your size and data requirements.
To see the product catalogue on our High Precision Steel Planetary Gearbox - Φ12-57mm , please
