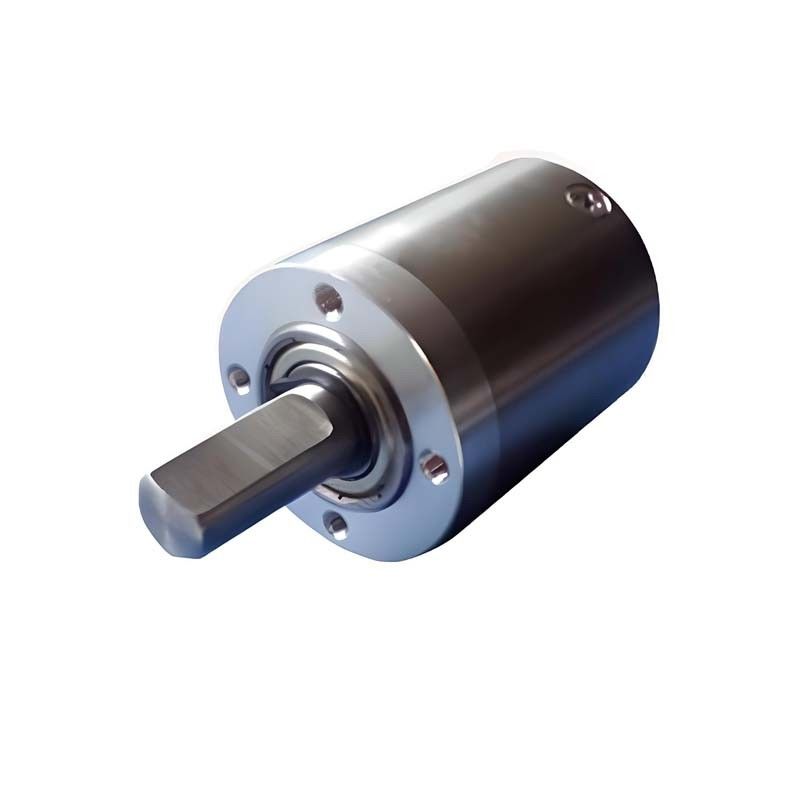

35mm Planetary Reducer Gearbox With Hardened Steel Gears 10N.M Robust
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | PM35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10000PCS per Month |
|
Detail Information |
|||
| Product Type: | Ø35mm Planetary Gear Reducer | Gear Ratio: | 3.47:1 To 6016.92:1 |
|---|---|---|---|
| Housing Material: | Stainless Steel | Gear Material: | All Steel With Hard Tooth Surface |
| Maximum Input Speed: | 6000 Rpm | Rated Output Torque: | 2N.m To 10N.m |
| Highlight: | 35mm Planetary Reducer Gearbox,Hardened Steel Gears Planetary Reducer Gearbox,35mm High Torque Planetary Gearbox |
||
Product Description
35mm Planetary Gear Reducer Gearhead with Hardened Steel Gears 10N.m Robust Low Noise
Product Tag: Planetary Gearbox , Metal Planetary Gearbox , Steel Planetary Gearbox , Customized Planetary Gearbox , Planetary Gearhead, Metal Planetary Gearhead , Steel Planetary Gearhead , Customized Planetary Gearhead , Planetary Gear Reducer , Metal Planetary Gear Reducer , Steel Planetary Gear Reducer , Customized Planetary Gear Reducer , NEMA 14 Planetary Gearhead , 35mm Planetary Gearbox , 35mm Planetary Gear Reducer , 35mm Planetary Gearhead
Planetary gearboxess – robust and precise
- PANDA Electronics' steel planetary gear reducer, when paired with their DC motors, are ideally suited for applications that require high torque, thanks to their robust construction. These steel planetary gear reducers are specifically designed to handle intermittent or sudden load changes, ensuring durability. Additionally, their low backlash feature enables exceptional accuracy, making them perfect for precise positioning tasks.
- Furthermore, PANDA Electronics specializes in developing high-precision gearboxes that can endure challenging operational conditions, whether that involves high torque, high speeds, or extreme temperatures. We also provide customization options for gearbox output shafts and flanges to meet specific needs.
Characteristics and Advantages:
- Type: planetary
- Housing material: Stainless steel
- Gear material: Full steel, hardened tooth surface
- Gear processing: Swiss gear hobbing machine, precision hobbing, overall carburizing and quenching
- Gearbox's outer diameter: 35mm
- Rated Torque range: from 2- 10Nm
- Number of stages: from single-stage to five-stage
- Wide gear ratio ranges: from 3.47:1 to 6016.92:1
- Output end bearing: ball bearing
Please review the standard data and dimensions of the gearboxes below. Please note that we can provide deep customization based on your size and data requirements.
To see the product catalogue on our High Precision Steel Planetary Gearbox - Φ12-57mm , please
