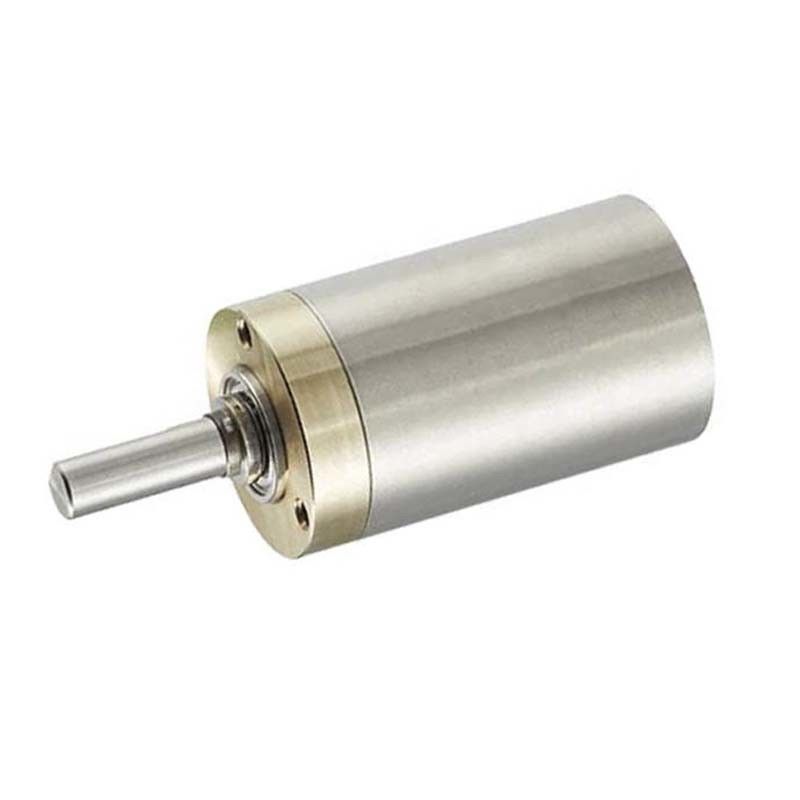

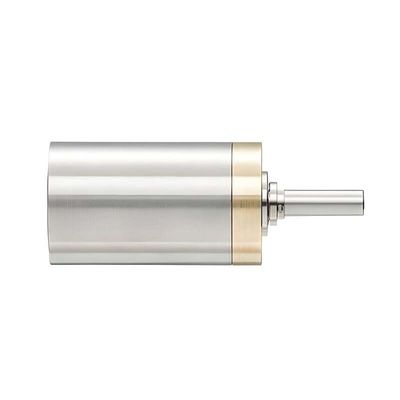

16mm Planetary Gearbox High Torque Low Noise Planetary Reducer Gearbox
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | CE, ROHS |
| Model Number: | PM16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10000PCS per Month |
|
Detail Information |
|||
| Product Type: | Ø16mm Planetary Gearhead | Gear Ratio: | 3.43:1 To 2182.95:1 |
|---|---|---|---|
| Housing Material: | Stainless Steel | Gear Material: | All Steel With Hard Tooth Surface |
| Maximum Input Speed: | 12000 Rpm | Rated Output Torque: | 0.3N.m To 0.6N.m |
| Highlight: | 16mm Planetary Gearbox,High Torque Planetary Gearbox,High Torque Planetary Reducer Gearbox |
||
Product Description
16mm Planetary Gearhead Gearbox with Hardened Steel Gears Robust high torque Low Noise
Product Tag: Planetary Gearbox , Metal Planetary Gearbox , Steel Planetary Gearbox , Customized Planetary Gearbox , Planetary Gearhead, Metal Planetary Gearhead , Steel Planetary Gearhead , Customized Planetary Gearhead , Planetary Gear Reducer , Metal Planetary Gear Reducer , Steel Planetary Gear Reducer , Customized Planetary Gear Reducer , 16mm Planetary Gearbox , 16mm Planetary Gear Reducer , 16mm Planetary Gearhead
Planetary gearboxes – robust and precise
- Thanks to their robust construction, PANDA ELectronics' Steel planetary gearheads in combination with PANDA ELectronics DC-motors are ideal for applications which demand the highest torque.
- PANDA ELectronics Steel planetary gearheads are designed for robustness to sustain intermittent or sudden load changes. Due to their low backlash characteristic and the resulting high accuracy, the metal planetary gearboxes are also ideally suited for precise positioning applications.
- PANDA ELectronics also excels in tailoring high-precision gearboxes to withstand demanding operational environments, whether it be for high torque, high-speed, high-temperature, or low-temperature applications. We offer customization options for gearbox output shafts and output flanges to suit specific requirements.
Characteristics and Advantages:
- Type: planetary
- Housing material: Stainless steel
- Gear material: Full steel, hardened tooth surface
- Gear processing: Swiss gear hobbing machine, precision hobbing, overall carburizing and quenching
- Gearbox's outer diameter: 16mm
- Rated Torque range: from 0.43 - 2182.95 Nm
- Number of stages: from single-stage to five-stage
- Wide gear ratio ranges: from 3.5:1 to 2036.27:1
- Output end bearing: ball bearing
Please review the standard data and dimensions of the gearboxes below. Please note that we can provide deep customization based on your size and data requirements.
To see the product catalogue on our High Precision Steel Planetary Gearbox - Φ12-57mm , please
