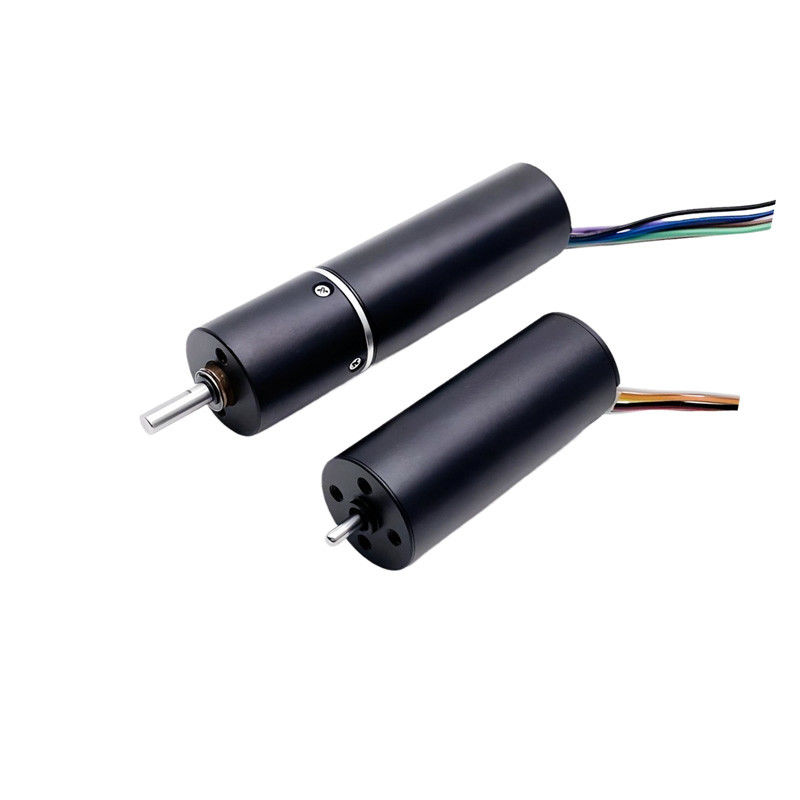

16mm Geared Brushless DC Motor 12V 18V 24V Low Speed Gear Motor 600mNm 8.8RPM to 5687RPM Customizable Electric Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM16-Gear Ratio-EC1630L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Product Type: | Low Speed Gear Motor | Rated Speed: | 8.8RPM To 5687RPM Or Customized |
|---|---|---|---|
| Rated Torque: | 9.1mNm To 600mNm Or Customized | Rated Voltage: | 12V To 24V DC Or Customized |
| Applicaiton Field: | Power Tools, Pumps, Medical Equipment, Robotic Prosthetic Fingers, Industry Automation | Warranty: | 3 Years |
| Highlight: | 16mm Brushless DC Gear Motor,24V Brushless DC Gear Motor |
||
Product Description
16mm Geared Brushless DC Motor 12V 18V 24V Low Speed Gear Motor 600mNm 8.8RPM to 5687RPM Customizable Electric Motor
Product Tag: 16mm Brushless Gear Motor , 16mm BLDC Gear Motor , 16mm Brushless DC Gear Motor , 16mm DC Brushless Gear Motor , 16mm Brushless Gearmotor , 16mm Brushless DC Gearmotor , 16mm Geared BLDC Motor , 16mm OEM Geared BLDC Motor , 16mm Geared Brushless DC Motor , 16mm High Torque Gear Motor , 16mm Low Speed Gear Motor , 16mm Brushless DC Gearbox Motor , 16mm Small DC Brushless Gear Motor
- Introducing our advanced Slotless Brushless Motor with a high-precision planetary gearbox. Panda’s motors excel at low speeds without cogging torque and feature low inertia for quick acceleration
- Coupled with precision gearboxes, they deliver high torque at low speeds with minimal backlash, making them ideal for intermittent use.
- PANDA offers a variety of reduction ratios, voltages, and sizes, with planetary gearboxes ranging from 8mm to 57mm in diameter.
Key Specifications for this 16mm Brushless DC Gear Motor:
- Gearbox Outer Diameter: 16 mm
- Rated Voltage: 12V DC to 24V DC or customized
- Gearbox Length: 18.1mm to 33.3mm
- Reduction Ratio: Wide range from 1: 3.43 to 1: 2182.95
- Rated Torque: wide range from 9.1mNm to 600mNm or Customized
- Rated Speed: wide range from 8.8rpm to 5687rpm or Customized
Typical Applications:
- Power Hand Tools: electric screwdrivers, electric pruning shears, dental hand tools, etc.
- Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
- Robotics: Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
- Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
- Consumer Electronics: cameras, printers, and scanners, where compact size and low power consumption are essential.
-
Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.
-
Automotive : power seats, window lifts, and other electronic controls within vehicles.
-
Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.
Remark:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please
Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
