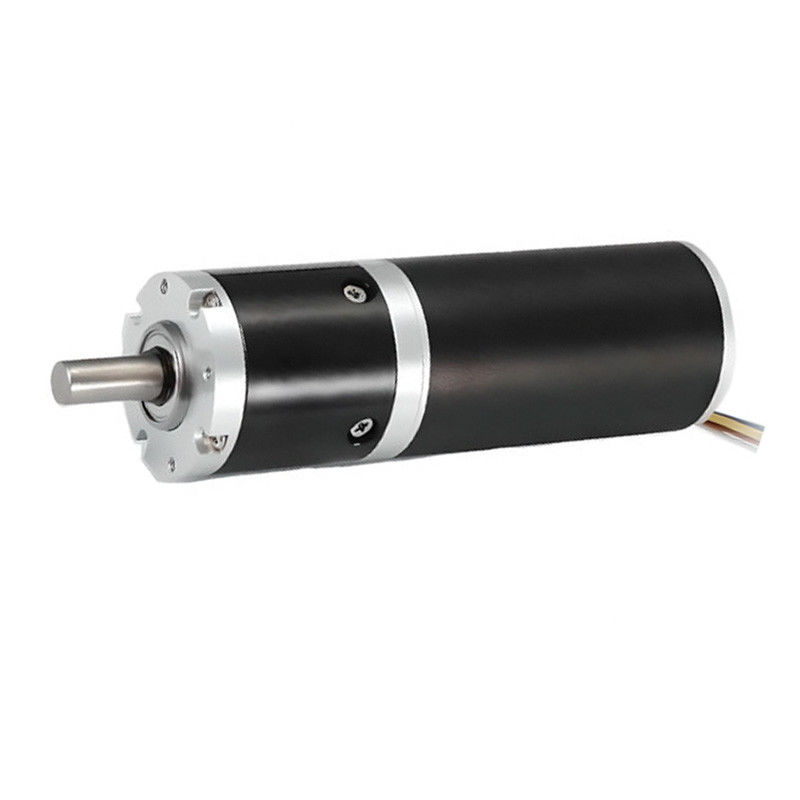

36mm Brushless DC Gear Motor 6000mNm 1958RPM Customizable High Efficiency

36mm Brushless DC Gear Motor 6000mNm 1.6 RPM to 1958RPM Customizable Slotless Brushless Motor

Product Tag:  36mm Brushless Gear Motor , 36mm BLDC Gear Motor , 36mm Brushless DC Gear Motor , 36mm DC Brushless Gear Motor , 36mm Brushless Gearmotor , 36mm Brushless DC Gearmotor , 36mm Geared BLDC Motor ,  36mm OEM Geared BLDC Motor ,  36mm Geared Brushless DC Motor , 36mm High Torque Gear Motor , 36mm Low Speed Gear Motor , 36mm Brushless DC Gearbox Motor , 36mm Small DC Brushless Gear Motor

• We are proud to introduce our advanced Coreless brushless motor, now integrated with a high-precision planetary gearbox. Panda’s slotless BLDC motors demonstrate exceptional performance, capable of operating at very low speeds without producing cogging torque. The low-inertia design enhances acceleration rates.
• For applications that demand high performance, slotless brushless motors are a superior choice, providing a higher power-to-weight ratio and extended lifespan compared to conventional DC motors.
• When paired with our high-precision gearboxes, Panda’s Brushless Gear Motors offer a reliable inline solution, delivering substantial torque at low speeds. Our Brushless DC Gear Motors are recognized for their high efficiency and exceptional torque output, surpassing other gear motor options. They effectively accommodate varying loads with minimal backlash, making them ideal for intermittent duty operations. With a broad selection of reduction ratios, voltages, and sizes, PANDA provides fully customized gear motor solutions tailored to your specific needs.

Our planetary gearboxes currently range from 8mm to 57mm in diameter.

Key Specifications for this Ø36mm dc brushless gear motor:

• Gearbox Outer Diameter: 36 mm
• Motor Outer Diameter:  35mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 26.8mm to 50.5mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 3061.3
• Rated Torque:  wide range from 158mNm to 2500mNm or Customized
• Rated Speed:  wide range from 2.2RPM to 2015RPM or Customized

Typical Applications:

• Power Hand Tools:  electric screwdrivers, electric pruning shears, dental hand tools, etc.
• Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
• Robotics:  Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
• Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
• Consumer Electronics:  cameras, printers, and scanners, where compact size and low power consumption are essential.

• Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.

• Automotive : power seats, window lifts, and other electronic controls within vehicles.

• Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushless DC Gear Motors   Φ12-42 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
