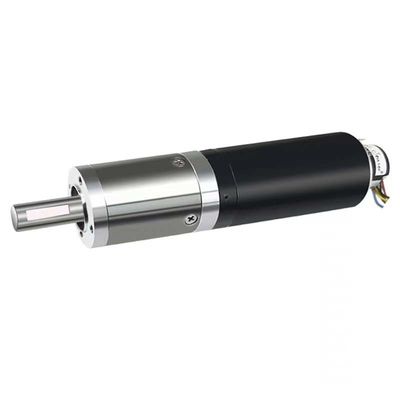

Customizable Brushless Gear Motor 28mm 48V 2500mNm 2024RPM Compact

28mm Brushless Gear Motor 12V to 48V Planetary Gearmotor 2500mNm 2.29RPM to 2024RPM Customizable

Product Tag: 28mm Brushless Gear Motor , 28mm BLDC Gear Motor , 28mm Brushless DC Gear Motor , 28mm DC Brushless Gear Motor , 28mm Brushless Gearmotor ,  28mm Brushless DC Gearmotor ,  28mm Geared BLDC Motor , 28mm OEM Geared BLDC Motor , 28mm Geared Brushless DC Motor , 28mm High Torque Gear Motor , 28mm Low Speed Gear Motor , 28mm Brushless DC Gearbox Motor , 28mm Small DC Brushless Gear Motor

• We are honored to present our sophisticated Coreless brushless motor, now integrated with a high-precision planetary gearbox. Panda’s slotless BLDC motors provide exceptional performance, capable of operating at very low speeds without the generation of cogging torque. The low-inertia design further enhances acceleration rates.
• For applications demanding high performance, slotless brushless motors represent an exemplary choice, offering superior power-to-weight ratios and extended operational lifespans compared to conventional DC motors.
• When integrated with our high-precision gearboxes, Panda’s Brushless Gear Motors deliver a reliable inline solution, characterized by high torque output at low speeds. These motors are distinguished by their high efficiency and outstanding torque performance, surpassing other gear motor alternatives. They effectively accommodate varying loads with minimal backlash, rendering them ideal for intermittent duty applications. With an extensive selection of reduction ratios, voltages, and sizes available, PANDA provides fully customized gear motor solutions tailored to meet your unique specifications.
• Our planetary gearboxes currently range from 8mm to 57mm in diameter.

Key Specifications for this Ø28mm dc brushless gear motor:

• Gearbox Outer Diameter: 27 mm
• Motor Outer Diameter:  28mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 26.8mm to 50.5mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 3061.3
• Rated Torque:  wide range from 110mNm to 2500mNm or Customized
• Rated Speed:  wide range from 2.29RPM to 2024RPM or Customized

Typical Applications:

• Power Hand Tools:  electric screwdrivers, electric pruning shears, dental hand tools, etc.
• Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
• Robotics:  Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
• Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
• Consumer Electronics:  cameras, printers, and scanners, where compact size and low power consumption are essential.

• Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.

• Automotive : power seats, window lifts, and other electronic controls within vehicles.

• Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushless DC Gear Motors   Φ12-42 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
