12mm Low Speed Gear Motor 6V 9V 12V OEM BLDC Motor 8.1RPM to 8539RPM Customizable Brushless DC Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM12-Gear Ratio-EC1220L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Product Type: | Geared BLDC Motor | Rated Speed: | 8.1RPM To 8539RPM Or Customized |
|---|---|---|---|
| Rated Torque: | 4.1mNm To 400mNm Or Customized | Rated Voltage: | 6V To 12V DC Or Customized |
| Applicaiton Field: | Power Tools, Pumps, Medical Equipment, Robotic Prosthetic Fingers, Industry Automation | Warranty: | 3 Years |
| Highlight: | 12V Low Speed Gear Motor,8539RPM Low Speed Gear Motor,12mm Low Speed Gear Motor |
||
Product Description
12mm Low Speed Gear Motor 6V 9V 12V OEM BLDC Motor 8.1RPM to 8539RPM Customizable Brushless DC Motor
Product Tag: 12mm Brushless Gear Motor , 12mm BLDC Gear Motor , 12mm Brushless DC Gear Motor , 12mm DC Brushless Gear Motor , 12mm Brushless Gearmotor , 12mm Brushless DC Gearmotor , 12mm Geared BLDC Motor , 12mm OEM Geared BLDC Motor , 12mm Geared Brushless DC Motor , 12mm High Torque Gear Motor , 12mm Low Speed Gear Motor , 12mm Brushless DC Gearbox Motor , 12mm Small DC Brushless Gear Motor

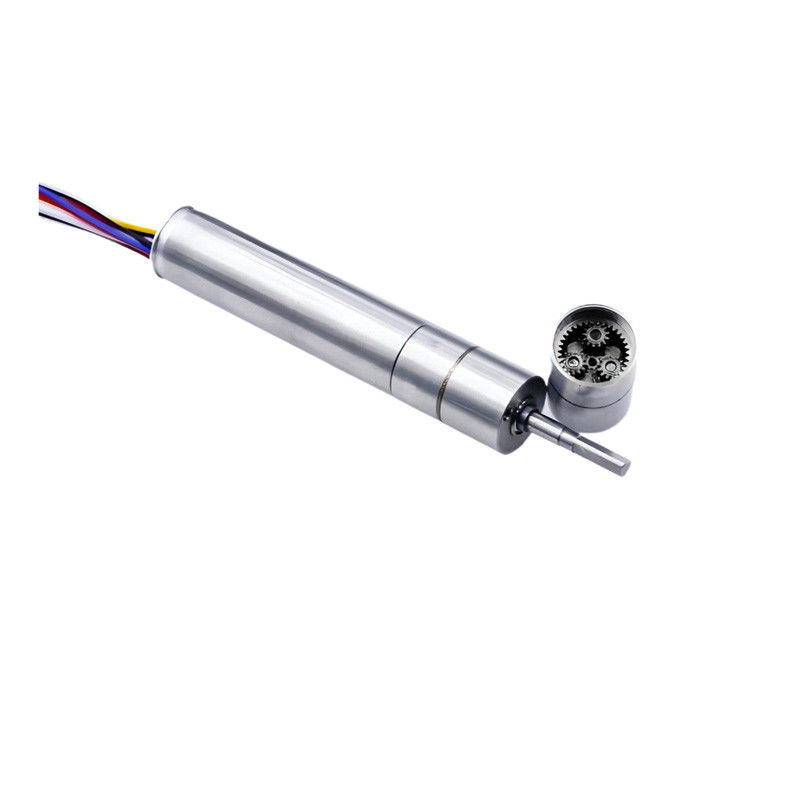

- Introducing our advanced slotless brushless motor, integrated with a high-precision planetary gearbox. Panda's slotless BLDC motors provide exceptional performance, capable of operating at very low speeds without cogging torque. This design features low inertia, which facilitates higher acceleration rates.
- When paired with high-precision gearboxes, Panda's Brushless DC Gear Motors offer a reliable inline solution, delivering high torque at low speeds. These motors are known for their high efficiency and superior torque output compared to conventional gear motors. They handle varying loads with minimal backlash, making them ideal for intermittent duty applications.
- Currently, our planetary gearboxes are available in a range of sizes from 8mm to 57mm in diameter.
Key Specifications for this 12mm Brushless DC Gear Motor:
- Gearbox Outer Diameter: 12 mm
- Rated Voltage: 6V DC to 12V DC or customized
- Gearbox Length: 14.3 mm to 25.5mm
- Reduction Ratio: Wide range from 1: 3.5 to 1: 2036.27
- Rated Torque: wide range from 4.1mNm to 400mNm or Customized
- Rated Speed: wide range from 8.1rpm to 8539rpm or Customized
Typical Applications:
- Power Hand Tools
- Bionics & Exoskeleton Systems
- Prosthetic Arms and Hands
- Dental Hand Tools
- Dosing and Dispensing Systems
- Electric Grippers for Robotics
Miscellaneous:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please
Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
