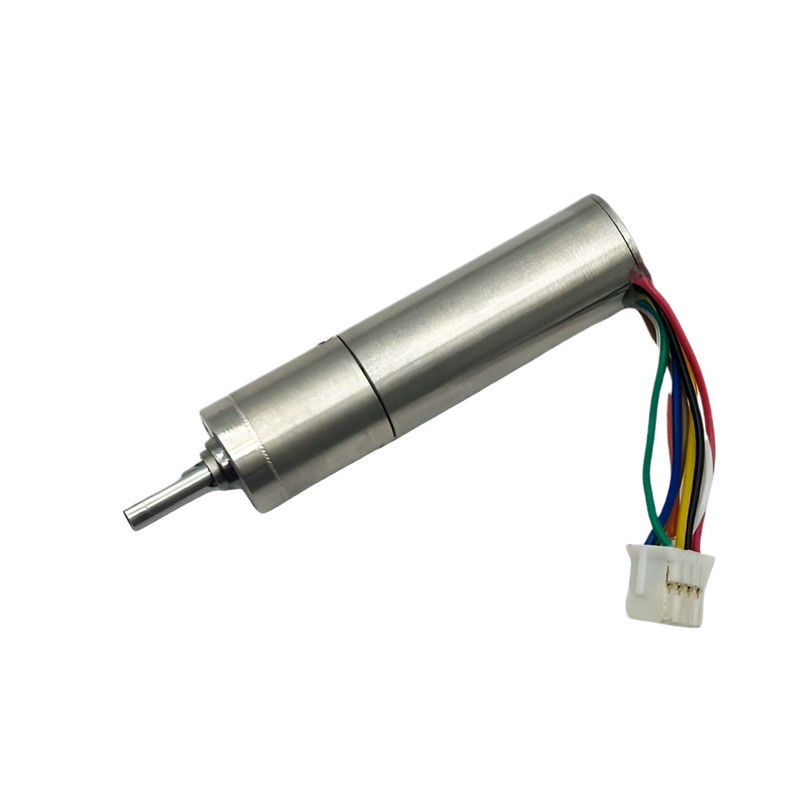

12mm DC Gear Motor with Encoder 6V 9V 12V Geared BLDC Motor 400mNm 10RPM to 5920RPM Customizable Micro Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM12-Gear Ratio-EC1230L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Product Type: | Brushless DC Gearmotor | Rated Speed: | 10RPM To 5920RPM Or Customized |
|---|---|---|---|
| Rated Torque: | 9.5mNm To 400mNm Or Customized | Rated Voltage: | 6V To 12V DC Or Customized |
| Applicaiton Field: | Power Tools, Pumps, Medical Equipment, Robotic Prosthetic Fingers, Industry Automation | Warranty: | 3 Years |
| Highlight: | 9V DC Gear Motor,10RPM DC Gear Motor,12mm DC Gear Motor |
||
Product Description
12mm DC Gear Motor with Encoder 6V 9V 12V Geared BLDC Motor 400mNm 10RPM to 5920RPM Customizable Micro Motor
Product Tag: 12mm Brushless Gear Motor , 12mm BLDC Gear Motor , 12mm Brushless DC Gear Motor , 12mm DC Brushless Gear Motor , 12mm Brushless Gearmotor , 12mm Brushless DC Gearmotor , 12mm Geared BLDC Motor , 12mm OEM Geared BLDC Motor , 12mm Geared Brushless DC Motor , 12mm High Torque Gear Motor , 12mm Low Speed Gear Motor , 12mm Brushless DC Gearbox Motor , 12mm Small DC Brushless Gear Motor
- Check out our incredible slotless brushless motor, now paired with a super precise planetary gearbox! Panda’s slotless BLDC motors are designed for amazing performance, running smoothly at low speeds without that annoying cogging torque. Their low-inertia design means quicker acceleration!
- When you put them together with our high-precision gearboxes, you get reliable Brushless DC Gear Motors that deliver high torque even at low speeds. Known for their efficiency and great torque output, these motors outshine the competition. They can handle different loads with minimal backlash, making them perfect for when you need to run intermittently. With tons of options for reduction ratios, voltages, and sizes, PANDA has the custom gear motor solutions you need.
- Our planetary gearboxes come in sizes from 8mm to 57mm!
Key Specifications for this 12mm Brushless DC Gear Motor:
- Gearbox Outer Diameter: 12 mm
- Rated Voltage: 6V DC to 12V DC or customized
- Gearbox Length: 14.3 mm to 25.5mm
- Reduction Ratio: Wide range from 1: 3.5 to 1: 2036.27
- Rated Torque: wide range from 9.5mNm to 400mNm or Customized
- Rated Speed: wide range from 10rpm to 5920rpm or Customized
Typical Applications:
- Power Hand Tools
- Bionics & Exoskeleton Systems
- Prosthetic Arms and Hands
- Dental Hand Tools
- Dosing and Dispensing Systems
- Electric Grippers for Robotics
Miscellaneous:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please
Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
