Customizable Geared Brushless DC Motor 22mm 48V 1500mNm 3474RPM Lightweight

22mm Geared Brushless DC Motor 12V to 48V Brushless Gear Motor 1500mNm 5.5RPM to 3474RPM Customizable

 Product Tag: 22mm Brushless Gear Motor , 22mm BLDC Gear Motor , 22mm Brushless DC Gear Motor , 22mm DC Brushless Gear Motor , 22mm Brushless Gearmotor , 22mm Brushless DC Gearmotor , 22mm Geared BLDC Motor , 22mm OEM Geared BLDC Motor , 22mm Geared Brushless DC Motor , 22mm High Torque Gear Motor , 22mm Low Speed Gear Motor , 22mm Brushless DC Gearbox Motor , 22mm Small DC Brushless Gear Motor

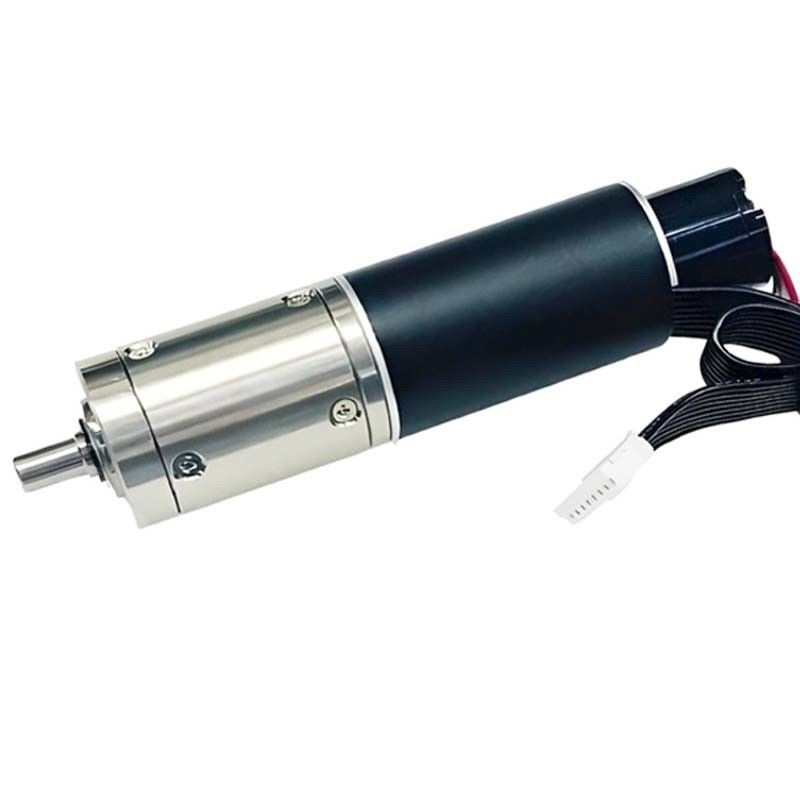

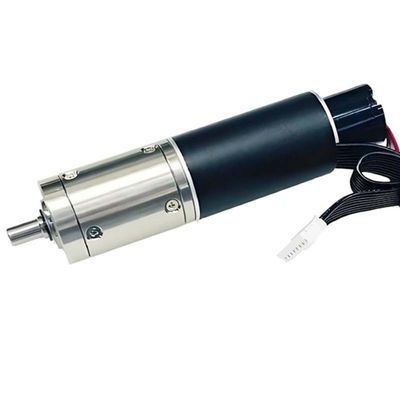

• We are proud to introduce our slotless brushless motor, paired with a high-precision planetary gearbox. Panda's slotless BLDC motors are designed for exceptional performance, allowing them to operate at very low speeds without cogging torque. The low inertia of this design results in higher acceleration rates.
• When integrated with high-precision gearboxes, Panda's Brushless DC Gear Motors offer a reliable inline solution that delivers significant torque at low speeds. Our motor designs feature high efficiency and excellent torque output compared to other gear motors, accommodating various loads with minimal backlash, which makes them suitable for intermittent duty applications. With a wide array of reduction ratios, voltages, and sizes available, PANDA provides fully customized gear motor solutions tailored to your needs.
• Our planetary gearboxes are available in a broad range of sizes, from 8mm to 57mm in diameter.

Key Specifications for this 22mm Brushless DC Gear Motor:

• Gearbox Outer Diameter: 22 mm
• Rated Voltage: 12V DC to 48V DC or customized
• Gearbox Length: 21.4mm to 38.4mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 2059.63
• Rated Torque:  wide range from 56.7mNm to 1500mNm or Customized
• Rated Speed:  wide range from 5.5RPM to 3474RPM or Customized

Typical Applications:

• Power Hand Tools:  electric screwdrivers, electric pruning shears, dental hand tools, etc.
• Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
• Robotics:  Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
• Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
• Consumer Electronics:  cameras, printers, and scanners, where compact size and low power consumption are essential.

• Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.

• Automotive : power seats, window lifts, and other electronic controls within vehicles.

• Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushless DC Gear Motors   Φ12-42 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
