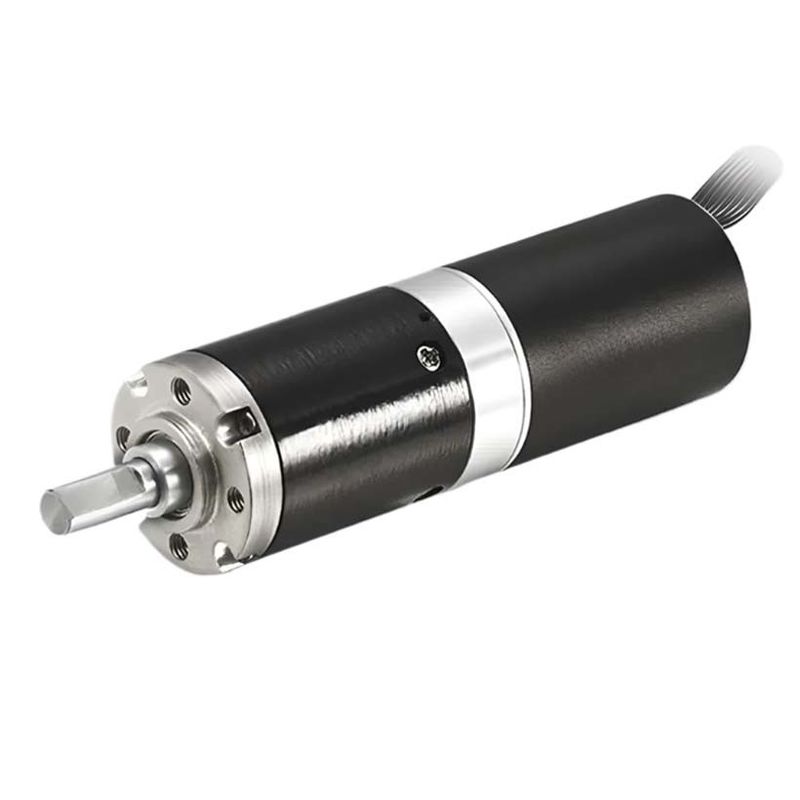

22mm Brushless DC Gear Motor 36V 1500mNm 7.0RPM BLDC Gear Motor Customizable

22mm BLDC Gear Motor 12V to 36V Brushless Gearmotor 1500mNm 7.0RPM to 4474RPM Customizable

Product Tag: 22mm Brushless Gear Motor , 22mm BLDC Gear Motor , 22mm Brushless DC Gear Motor , 22mm DC Brushless Gear Motor , 22mm Brushless Gearmotor , 22mm Brushless DC Gearmotor , 22mm Geared BLDC Motor , 22mm OEM Geared BLDC Motor , 22mm Geared Brushless DC Motor , 22mm High Torque Gear Motor , 22mm Low Speed Gear Motor , 22mm Brushless DC Gearbox Motor , 22mm Small DC Brushless Gear Motor

• Introducing our slotless bldc motor paired with a high-precision planetary gearbox. Panda's slotless bldc motors deliver exceptional performance, capable of operating at very low speeds without cogging torque. This design also features low inertia, enabling higher acceleration rates.
• When assembled with high-precision gearboxes, Panda's Brushless DC Gear Motors provide a reliable inline solution, delivering high torque at low speeds. Panda's Brushless DC Gear Motor designs boast high efficiency and excellent torque output relative to other gear motors. They can accommodate varying loads with minimal backlash, making them ideal for intermittent duty operation. With a wide range of reduction ratios, voltages, and sizes available, PANDA offers fully customized gear motor solutions tailored to your needs.
• Presently, Our planetary gearboxes span a wide range of sizes, ranging from 8mm to 57mm in diameter.

Key Specifications for this 22mm BLDC Gear Motor:

• Gearbox Outer Diameter: 22 mm
• Rated Voltage: 12V DC to 36V DC or customized
• Gearbox Length: 21.4mm to 38.4mm
• Reduction Ratio:  Wide range from 1: 3.5 to 1: 2059.63
• Rated Torque:  wide range from 37.8mNm to 1500mNm or Customized
• Rated Speed:  wide range from 7RPM to 4474RPM or Customized

Typical Applications:

• Power Hand Tools:  electric screwdrivers, electric pruning shears, dental hand tools, etc.
• Industrial Automation: Conveyor systems, automated guided vehicles (AGVs) and other machinery that requires precise movement.
• Robotics:  Electric Grippers, Robotic arms, drones, autonomous vehicles, etc.
• Medical Devices: surgical instruments, prosthetics, and rehabilitation devices, Dosing and Dispensing Systems, etc., where precision and reliability are critical.
• Consumer Electronics:  cameras, printers, and scanners, where compact size and low power consumption are essential.

• Aerospace : Used in actuators and control surfaces in aircraft, where performance and reliability are paramount.

• Automotive : power seats, window lifts, and other electronic controls within vehicles.

• Home Appliances: vacuum cleaners, coffee machines, and other appliances that require efficient and quiet operation.

Remark:

• Please contact us for detailed specifications and drawings of the geared motor you need.
• We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushless DC Gear Motors   Φ12-42 mm , please

                 Check Here and download.

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization

based on your size and data requirements.
