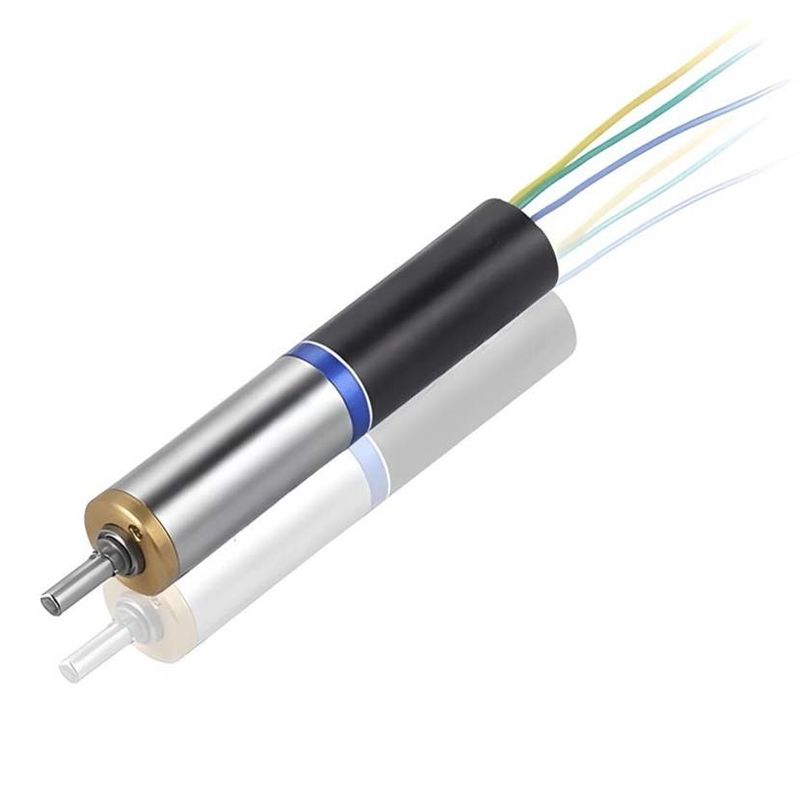

Portable 12mm Brushless Gear Motor 6V 9V 12V BLDC 400mNm 10RPM Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM12-Gear Ratio-EC1230L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Product Type: | Brushless Gear Motor | Rated Speed: | 10RPM To 5920RPM Or Customized |
|---|---|---|---|
| Rated Torque: | 9.5mNm To 400mNm Or Customized | Rated Voltage: | 6V To 12V DC Or Customized |
| Applicaiton Field: | Power Tools, Pumps, Medical Equipment, Robotic Prosthetic Fingers, Industry Automation | Warranty: | 3 Years |
| Highlight: | Portable Brushless Gear Motor,Brushless Gear Motor Customizable,Customizable Brushless DC Gearmotor |
||
Product Description
12mm Brushless Gear Motor 6V 9V 12V BLDC Gear Motor 400mNm 10RPM to 5920RPM Customizable
Product Tag: 12mm Brushless Gear Motor , 12mm BLDC Gear Motor , 12mm Brushless DC Gear Motor , 12mm DC Brushless Gear Motor , 12mm Brushless Gearmotor , 12mm Brushless DC Gearmotor , 12mm Geared BLDC Motor , 12mm OEM Geared BLDC Motor , 12mm Geared Brushless DC Motor , 12mm High Torque Gear Motor , 12mm Low Speed Gear Motor , 12mm Brushless DC Gearbox Motor , 12mm Small DC Brushless Gear Motor
- We are proud to introduce our slotless brushless motor, now integrated with a high-precision planetary gearbox. Panda's slotless BLDC motors are engineered to deliver exceptional performance, enabling operation at very low speeds without cogging torque. This design incorporates low inertia, allowing for higher acceleration rates.
- When paired with high-precision gearboxes, Panda's Brushless DC Gear Motors provide a reliable inline solution, delivering substantial torque at low speeds. These motors are recognized for their high efficiency and superior torque output compared to other gear motors, accommodating various loads with minimal backlash—making them particularly suitable for intermittent duty applications.
- Our planetary gearboxes currently span a range of sizes from 8mm to 57mm in diameter, providing flexibility for customization.
Key Specifications for this 12mm Brushless DC Gear Motor:
- Gearbox Outer Diameter: 12 mm
- Rated Voltage: 6V DC to 12V DC or customized
- Gearbox Length: 14.3 mm to 25.5mm
- Reduction Ratio: Wide range from 1: 3.5 to 1: 2036.27
- Rated Torque: wide range from 9.5mNm to 400mNm or Customized
- Rated Speed: wide range from 10rpm to 5920rpm or Customized
Typical Applications:
- Power Hand Tools
- Bionics & Exoskeleton Systems
- Prosthetic Arms and Hands
- Dental Hand Tools
- Dosing and Dispensing Systems
- Electric Grippers for Robotics
Miscellaneous:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushless DC Gear Motors Φ12-42 mm , please

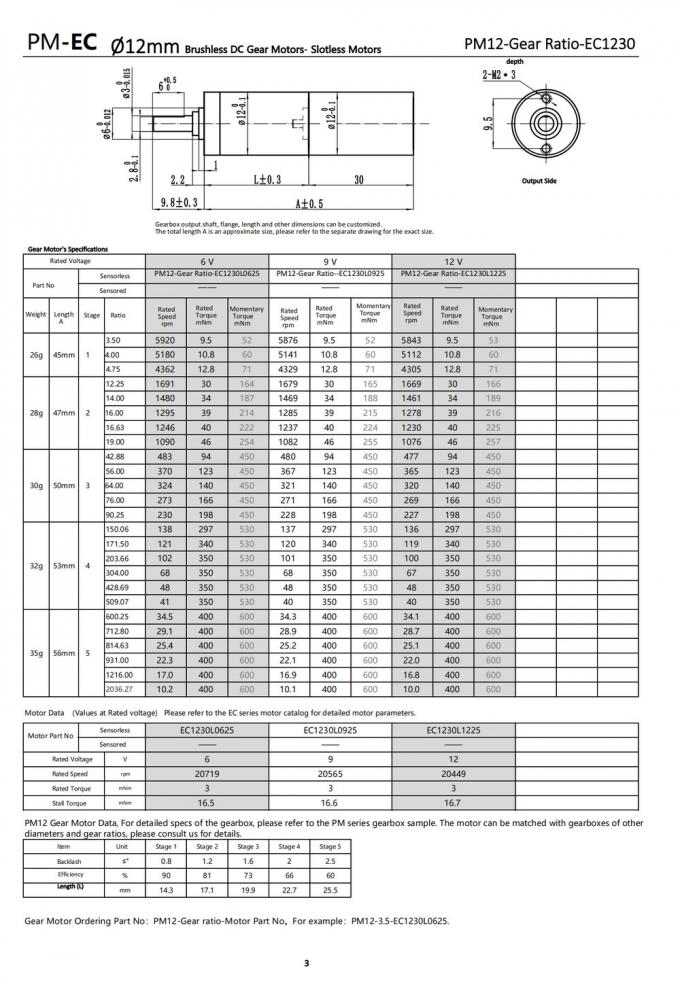

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
