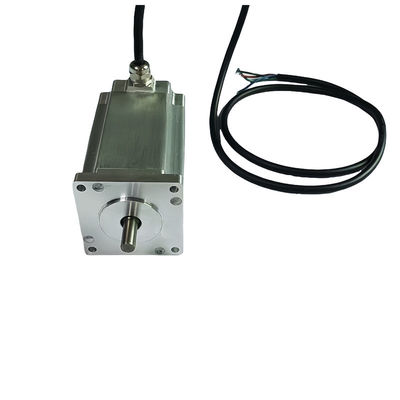

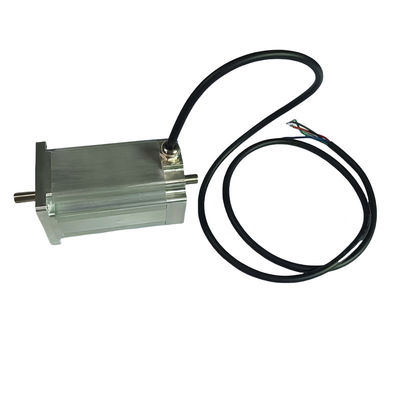

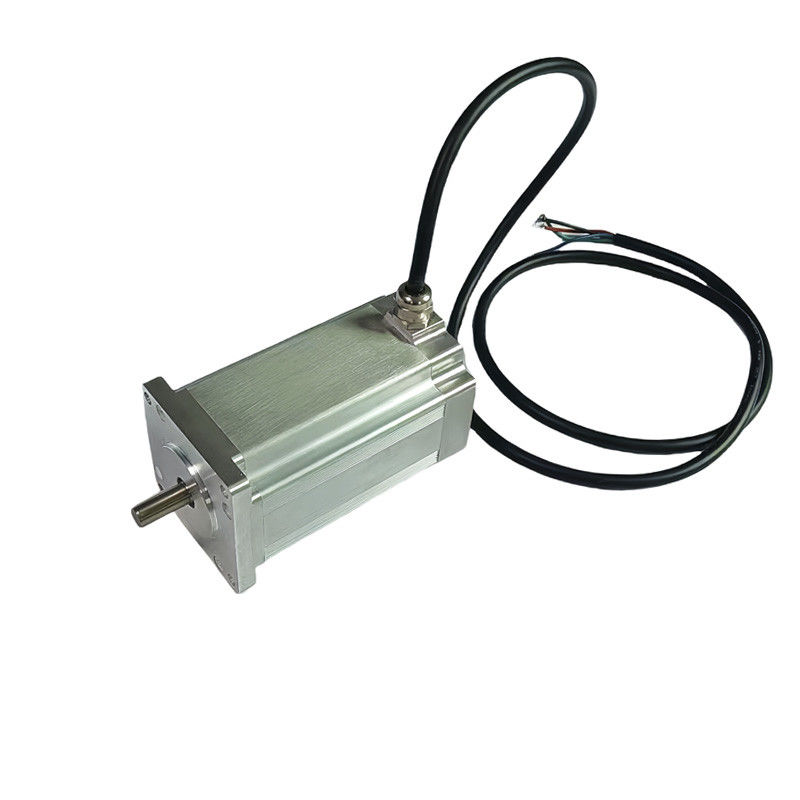

3N.m Nema 24 Stepper Motor IP 67 Grade Double Shaft for Solar Panel Tracking Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | GH-60S8401IP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Dimension: | 60 X 60 X 105mm Stepper Motor | Step Angle: | 1.8° Degree |
|---|---|---|---|
| Rated Voltage: | 48V DC Or Customized | Applicaiton Field: | Solar Panel Tracking System, Medical Equipment, Communication Technology, Security Systems, Vehicle Manufacturing, Robotics, Logistics Warehousing, Industrial Automation |
| Warranty: | 3 Years | Motor Type: | Stepper Motor |
| Phase: | 2 Phase | Rated Current: | 4.0 A |
| Holding Torque: | 3N.m | IP Grade: | IP 67 |
Product Description
3N.m Nema 24 Stepper Motor IP 67 Grade Double Shaft for Solar Panel Tracking Systems
Description:
1. This stepper motor is a high-performance, IP67-rated product developed and customized specifically for the European market by our company.
2. It uses high-grade materials: the screws are made of 304 stainless steel, and the shaft outlet is equipped with a fully fluororubber seal, which is heat-resistant and has an ultra-long lifespan.
3. The connection parts of the body utilize multiple O-rings, including two waterproof terminals for the motor leads, ensuring the entire motor body’s waterproof and sealing integrity.
4. Our specially designed, thicker waterproof motor leads feature internal vent tubes to equalize internal and external air pressure during operation, preventing the seal from failing.
5. The dimensions of the front and rear output shafts of the motor, including the internal encoder, can be customized according to the customer’s requirements.
Upgrade your systems with our reliable and adaptable Nema 24 60mm Stepper Motor solution, perfect for a wide array of industrial and consumer applications.
Key Specifications for this Ø60mm Stepper Motor
- Motor Dimension: 60mm * 60mm
- Rated Voltage: 48V DC
- Step Angle: 1.8 degree.
- Holding Torque: 3 N.m
- IP grade: IP 67
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
