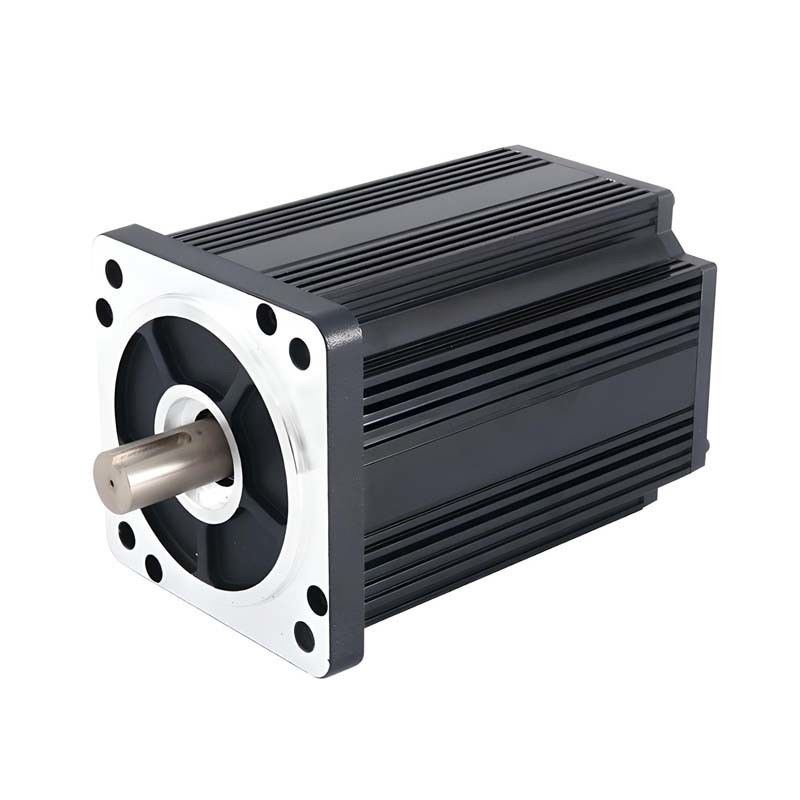

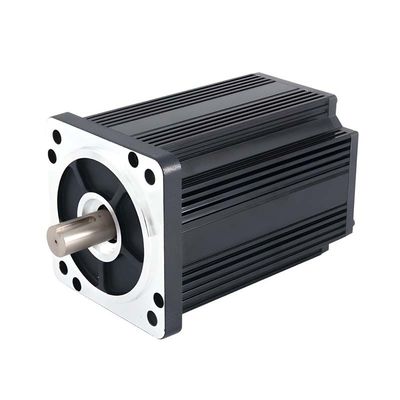

Customize 180mm Inrunner Brushless Motor Compact 5000W 24V 3000RPM 50N.M
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | 180BL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | 180mm Brushless DC Electric Motor | Rated Speed: | 3000RPM Or Customized |
|---|---|---|---|
| Rated Output Power: | 5000 Watt To 10500 Watt Or Customized | Rated Voltage: | 24V 48V 96V Or Customized |
| Applicaiton Field: | Textile Machinery, Medical Equipment, Communication Technology, Security Systems, Vehicle Manufacturing, Robotics, Logistics Warehousing, Industrial Automation | Warranty: | 3 Years |
| Dimension: | Ø180mm Inner Rotor BLDC Motor - Ø180 Mm*235 Mm ( 273mm Or 345mm) | ||
| Highlight: | Customize Inrunner Brushless Motor,Compact Inrunner Brushless Motor,Customize Brushless Inrunner Motor |
||
Product Description
Customize 180mm Inrunner Brushless Motor Compact 5000W 24V 3000RPM 50N.M
Product Tag: 180mm Brushless Motor , 180mm Brushless Electric motor , 180mm BLDC Motor , 180mm DC Brushless Motor , 180mm Brushless DC Motor , 180mm Inrunner Brushless Motor , 180mm Brushless Inrunner Motor , 180mm Inner Rotor BLDC Motor , 180mm Brushless PMDC Motor , 180mm PMDC Brushless Motor , 5000W Brushless Motor , 48V Brushless Motor , 24V Brushless Motor , 180mm Micro Brushless Motor , 180mm Brushless DC Electric Motor , 180mm Sensored Brushless Motor , 180mm Sensorless Brushless Motor
-
The Ø 180mm Brushless Electric Motor in the EC-i 180BL series is a highly customizable high-torque model, available in multiple body lengths.
-
Features:
Rated Speed is 3,000 RPM
8 Pole Rare Earth design
Robust and Reliable Performance -
5000 Watt to 10500 Watt output power or specs can be customized
- Moreover, it integrates effortlessly with precision gearboxes, encoders, and brakes to enhance overall functionality.
Applications:
Panda Tech's brushless DC motors find extensive use in a variety of sectors, including textile machinery, medical equipment, communication technology, security systems, vehicle manufacturing, robotics, logistics warehousing, and industrial automation.
With a strong focus on innovation, Panda's dedicated R&D team is well-equipped to address the diverse and evolving demands of the market.
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
To see the product catalogue on our Inner Rotor BLDC Motor - Φ22-180mm , please
