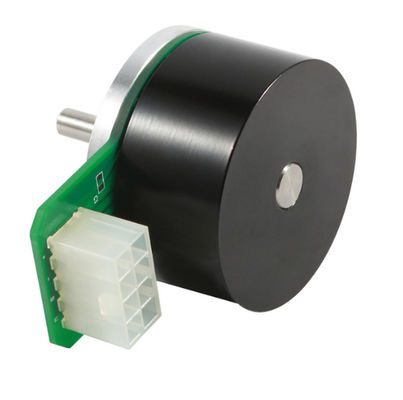

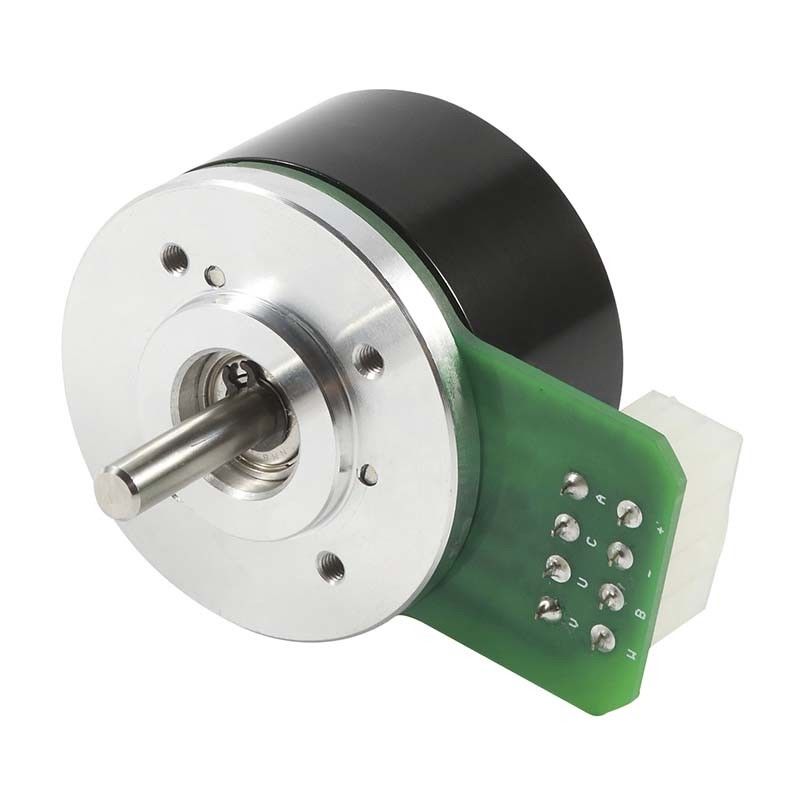

Customizable Sensored Outrunner Motor 42mm 35W For Solar Tracking And Power Tools
Product Details:
| Place of Origin: | China |
| Brand Name: | PM |
| Certification: | REACH & CE |
| Model Number: | PM42Flat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Pieces |
|---|---|
| Price: | USD$20 - $55 PER Piece |
| Packaging Details: | L42*W27*H23cm, strong export carton box outside,Poly foam inside |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS per Month |
|
Detail Information |
|||
| Motor Type: | Outrunner Brushless Motor | Rated Speed: | 5000RPM Or Customized |
|---|---|---|---|
| Rated Output Power: | 35W, 50W, 70W Or Customized | Rated Voltage: | 24 V DC Or Customized |
| Applicaiton Field: | Solar Tracking & Cleaning Systems, HVAC Systems, Electric Vehicles, Hand-held Power Tools | Warranty: | 3 Years |
| Highlight: | Customizable Sensored Outrunner Motor,Solar Tracking Sensored Brushless Motor,Power Tools Outer Rotor Brushless Motor |
||
Product Description
42mm Outrunner Brushless Motor External Rotor Motor 35W to 70W Customizable for Solar Tracking HVAC Power Tools
Product Tag: 42mm Brushless Outrunner Motor , 42mm Outrunner Brushless Motor , 42mm Outrunner BLDC Motor , 42mm BLDC Outrunner Motor , 42mm Outer Rotor Brushless Motor, 42mm Brushless Motor, 42mm Brushless Electric motor , 42mm BLDC Motor , 42mm Sensored Brushless Motor , 42mm Sensorless Brushless Motor , 42mm External Rotor Motor , 42mm Outer Rotor Motor,Outer Rotor Motor
- PM42FLAT is 24V Outerunner Brushless Motor with 5000 RPM Speed and 0.1N.m Torque.
- These motors can be customized and can combined with various types of gearboxes and drivers as per requirement.
- It is 42 mm in diameter and have three different height. These Motors are available with sensors and without sensors.
- Robust Ball bearings ensure excellent service life with ≥ 5000 hours.
- Drivers are also available as an Add-On unit on special request.
- These motors are available at different speeds and different voltages on special request.
Applications:
- Solar tracking & cleaning systems, HVAC systems, electric vehicles, hand-held power tools
Upgrade your systems with our reliable and adaptable BLDC motor solution, perfect for a wide array of industrial and consumer applications.
Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
Standard Data
| Motor Model | PM42FLAT243550 | PM42FLAT245050 | PM42FLAT247050 |
| Number of Phase | 3 | ||
| Number of Poles | 16 | ||
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 5000 | ||
| Rated Torque(N.m) | 0.06 | 0.1 | 0.13 |
| Rated Power(W) | 35 | 50 | 70 |
| Rated Current(A) | 2.2 | 3.2 | 4.4 |
| Peak Current(A) | 6.6 | 9.6 | 13.2 |
| Peak Torque(N.M) | 0.18 | 0.3 | 0.39 |
| Rotor Inertia(kg.cm2) | 0.13 | 0.23 | 0.33 |
| Torque Constant(N.m/A) | 0.0.3 | 0.03 | 0.0.3 |
| Torque Constant(V/krpm) | 2.8 | 2.8 | 2.8 |
| Line-Line Resistance(Ω) | 2.0 | 1.5 | 1.0 |
| Line-Line Inductance(mH) | 1.5 | 1.0 | 0.5 |
| Length(mm) | 21.3 | 26.3 | 31.3 |
| Weight(kg) | 0.12 | 0.18 | 0.24 |
